Saturn 8K

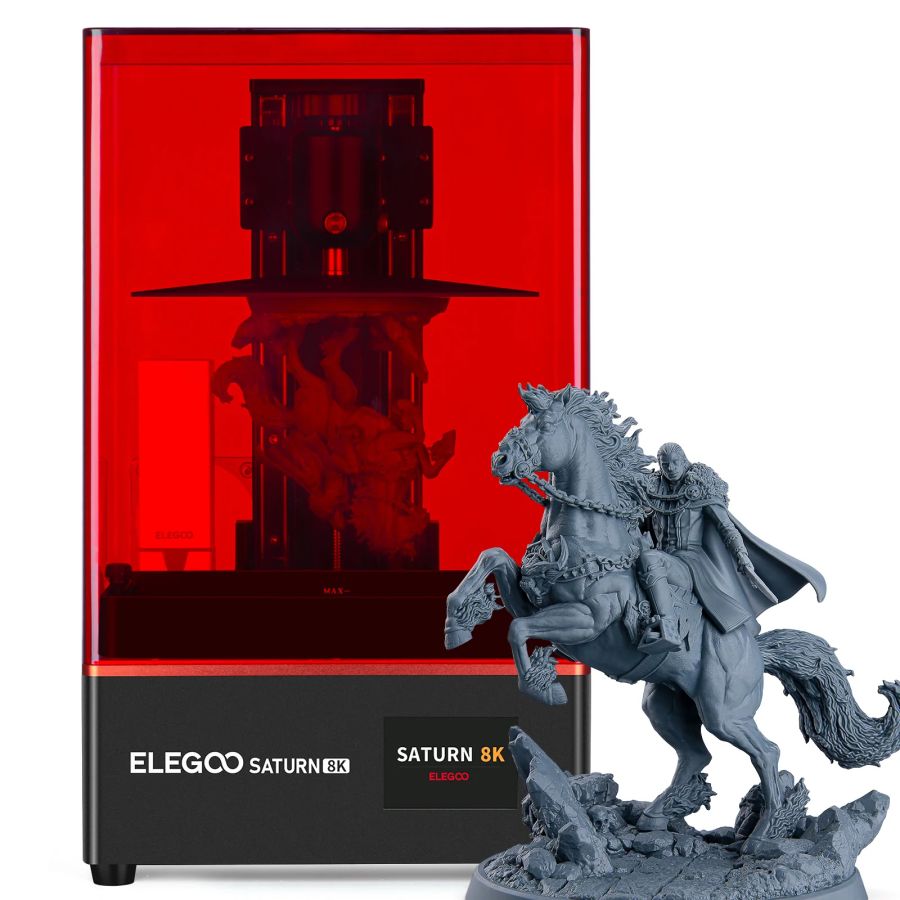

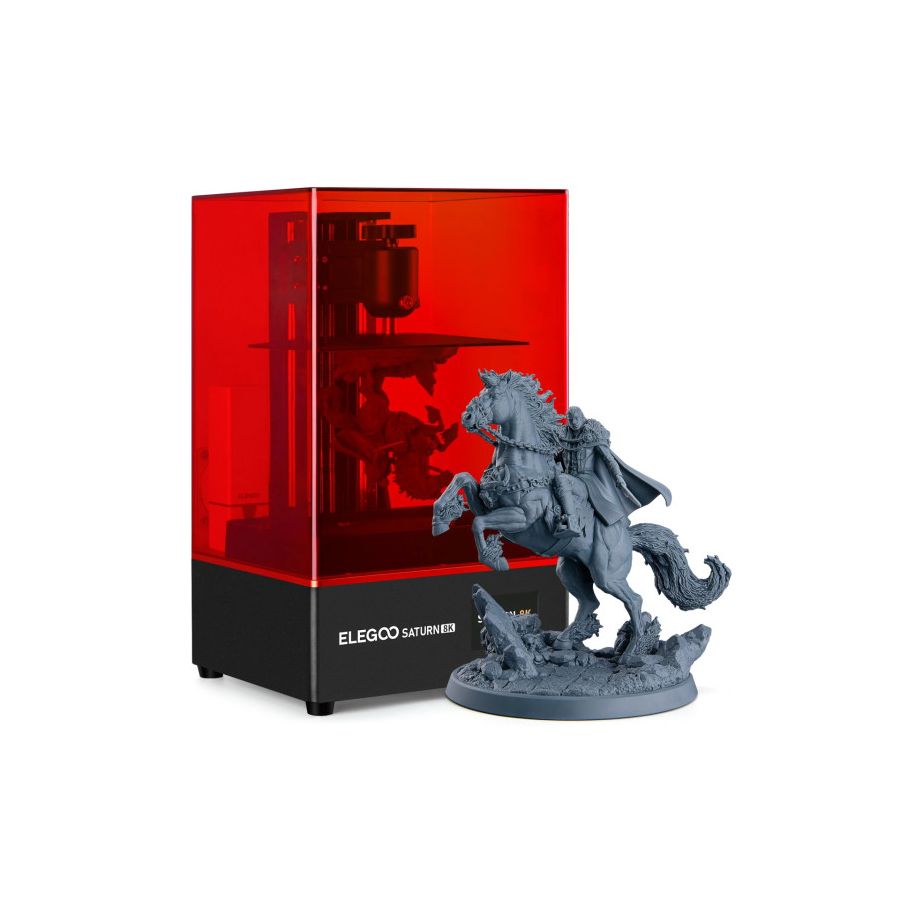

Elegoo Saturn 8K Resin 3D Printer – Precision Meets Performance

Introducing the Elegoo Saturn 8K, a state-of-the-art resin 3D printer designed to provide unmatched precision and efficiency for both hobbyists and professionals. Building on the esteemed Saturn series, the Saturn 8K seamlessly integrates advanced technology with user-friendly features, setting a new standard in high-resolution 3D printing.

Exceptional 8K Monochrome LCD Screen

At the core of the Saturn 8K is a 10-inch monochrome LCD screen with an impressive resolution of 7680 x 4320 pixels. This ultra-high-definition display delivers an outstanding XY resolution of 28.5 microns, allowing for the creation of models with fine details and sharp edges. Whether crafting intricate prototypes or detailed figurines, the Saturn 8K captures every nuance with remarkable clarity.

Generous Build Volume for Versatile Projects

With a substantial build volume of 219 x 123 x 210 mm, the printer provides ample space for a variety of printing projects. This large capacity allows for the production of bigger models or multiple smaller parts simultaneously, significantly increasing productivity and accommodating diverse project needs.

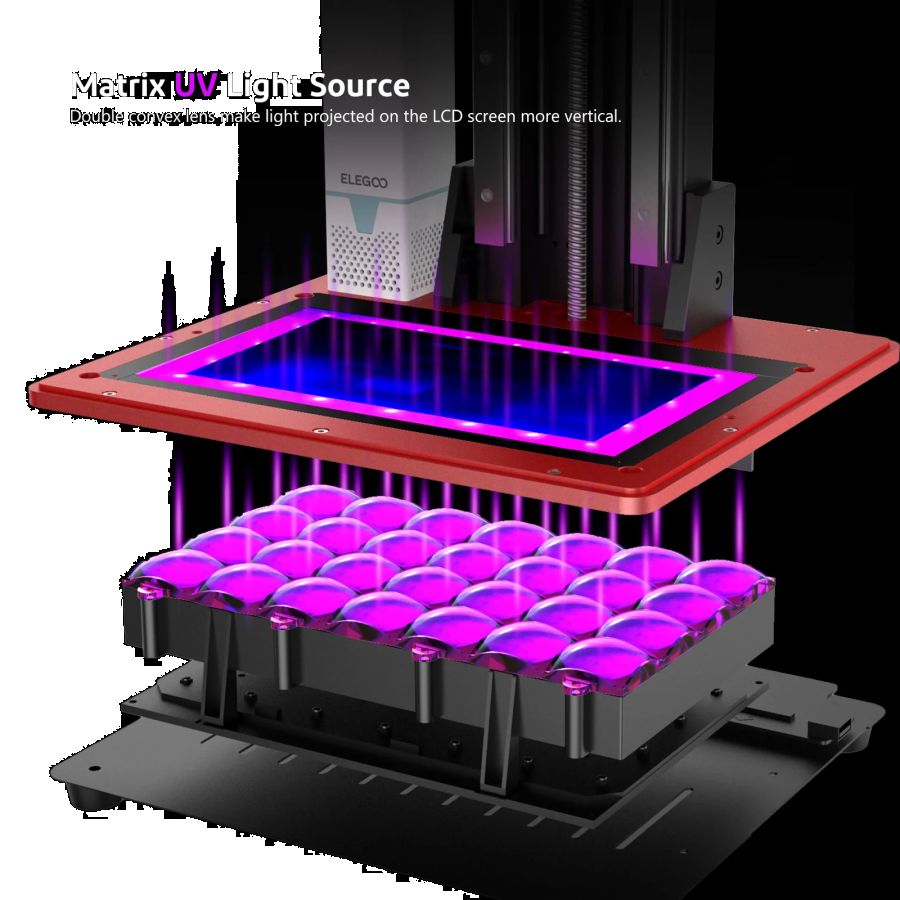

Advanced Matrix UV Light Source

Fitted with a sophisticated matrix UV light source featuring 28 high-intensity LEDs, the Saturn 8K ensures even and efficient curing of resin layers. The unique double convex lens design reduces light scattering, directing light vertically onto the LCD screen at a precise 5-degree angle. This precision engineering enhances printing accuracy and minimises dimensional deviations, resulting in prototypes that closely adhere to design specifications.

Robust and Reliable Structural Design

Stability and accuracy are crucial in 3D printing, and the Saturn 8K excels in both. The Z-axis is reinforced with dual linear rails and non-slip hexagon socket levelling screws, ensuring smooth and precise vertical movements. This solid construction reduces vibrations and improves overall print quality. Additionally, the sandblasted build plate offers superior adhesion during printing, while the PFA release liner (FEP 2.0) allows for easy model removal, simplifying the post-processing workflow.

User-Friendly Features for an Enhanced Printing Experience

Recognising the importance of a comfortable working environment, Elegoo has equipped the Saturn 8K with a USB-powered air purifier featuring an activated carbon filter. This thoughtful addition helps to absorb and eliminate unpleasant resin odours, creating a fresher and more enjoyable workspace. The printer's heat dissipation system, incorporating dual heat-conducting copper tubes, ensures efficient ventilation and temperature regulation, extending the device’s lifespan and maintaining optimal performance.

Effortless Setup and Operation

The Saturn 8K is designed with ease of use in mind. Its intuitive two-bolt levelling system simplifies the calibration process, making it accessible even for beginners. The 3.5-inch LCD touchscreen interface offers a straightforward and responsive platform for adjusting printer settings and monitoring progress. While the printer operates via USB connectivity, the conveniently positioned USB port on the right-hand side ensures easy file transfers, enabling a smooth workflow.

Optimised for High-Speed Printing

Time efficiency is a key factor in 3D printing, and the Saturn 8K delivers with impressive printing speeds ranging from 30 to 70 mm per hour, depending on the resin used. The monochrome LCD screen reduces exposure times to just 1–3 seconds per layer, significantly accelerating the printing process without compromising quality. This combination of speed and precision makes the Saturn 8K an invaluable asset for rapid prototyping and production.

Versatility Across Applications

With its advanced features and high-resolution capabilities, the Elegoo Saturn 8K is highly versatile, making it ideal for a wide range of applications. From creating detailed miniatures and intricate jewellery designs to producing precise engineering prototypes and dental models, the Saturn 8K consistently delivers reliable results. Its compatibility with various 405 nm UV-sensitive resins further expands its usability across different industries and creative fields.

Summary

In summary, the Elegoo Saturn 8K is a testament to Elegoo’s dedication to innovation and quality in resin 3D printing. Combining ultra-high-definition printing, a generous build volume, robust construction, and user-friendly features, it is an excellent choice for those looking to enhance their 3D printing capabilities. Whether you're an experienced professional or a passionate hobbyist, the Saturn 8K provides the tools and performance needed to bring your most ambitious creations to life with exceptional detail and efficiency.
